In the recently, we were informed the lcd panel SP12002 has been discontinued. As a one of the lcd panel supplier, our company also only have about 200pcs in stock.
HITACHI lcd panel SP12N002 is widely used in all aspects of the field of industrial control system. We often sold to countries around the world.

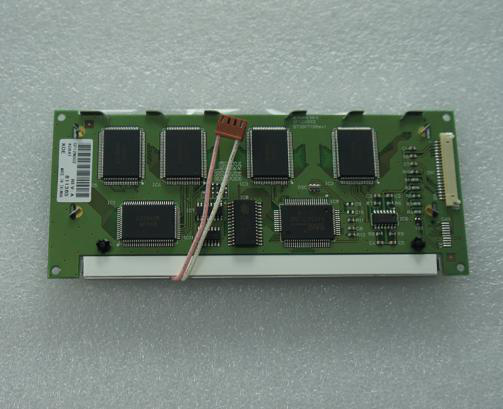

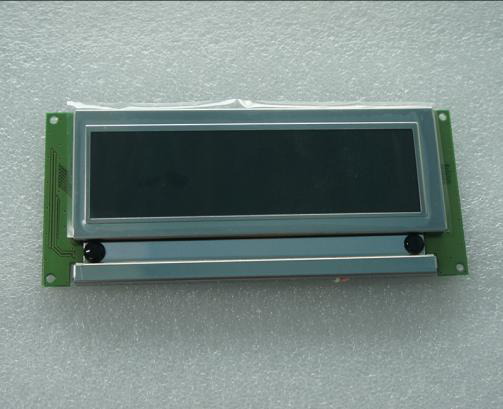

SP12N002 is a 4.8" diagonal FSTN-LCD display panel product with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are in the following: Landscape type, Bar Display , Film type black/white (Positive/negative).Built-in T6963C driver IC. But now this model is discontinued.
SP12N002 supports display 256×64 with aspect ratio of >3:1 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 120.29(W)×30.05(H) mm, outline size of 160(W)×68(H)×12(D) mm, viewing area size of 124.3(W)×34.05(H) mm, with surface treament of Hard coating (3H). As a STN, Black/White mode, Transmissive LCM product, SP12N002 can provides 90 cd/m² display brightness 20:1 transimissive contrast ratio, 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 110/160 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. SP12N002 utilizes 8-bit parallel as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 75Hz.
If you need it now or in the future, you can contact us directly, hope we can become your most reliable partner.
HITACHI lcd panel SP12N002 is widely used in all aspects of the field of industrial control system. We often sold to countries around the world.
SP12N002 is a 4.8" diagonal FSTN-LCD display panel product with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are in the following: Landscape type, Bar Display , Film type black/white (Positive/negative).Built-in T6963C driver IC. But now this model is discontinued.
SP12N002 supports display 256×64 with aspect ratio of >3:1 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 120.29(W)×30.05(H) mm, outline size of 160(W)×68(H)×12(D) mm, viewing area size of 124.3(W)×34.05(H) mm, with surface treament of Hard coating (3H). As a STN, Black/White mode, Transmissive LCM product, SP12N002 can provides 90 cd/m² display brightness 20:1 transimissive contrast ratio, 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 110/160 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. SP12N002 utilizes 8-bit parallel as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 75Hz.
If you need it now or in the future, you can contact us directly, hope we can become your most reliable partner.
